The microcomputer controller has self learning function; The drive works smoothly, it’s safe and reliable; The comprehensive functions can satisfy the individual needs.



European design structure

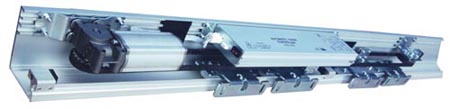

Motor, controller and belt pulley are hanging in the guide rail top, gives the larger space ror big hangers to drive smoothly, there is very soft noise.



Multi-functional switch

Managers can realize the automatic door five functions conveniently: lock, keep open, single direction entrance, half open, automatic operation.



Security requirement

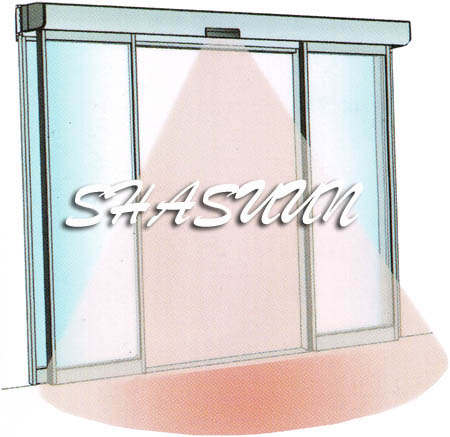

The safety beam photocell will keep the door open to offer the security for passer-by.

In an emergency, press the abrupt stop switch, the door will stop immediately, security is fully guaranteed.



The door will open automatically when fire happens; it helps to win time for escapes.

Technical Data

Door configuration: Single leaf, Double leaves

Door leaf weight limit: 1× 150kg， 2×120kg，

Door leaf width: 600-1800mm, 1000-3000mm

Power voltage: AC 220V±10%，50-60Hz

                    AC 110V±10%，50-60Hz

Power consumption: 65W

Opening speed: 200-500mm/S (adjustable)

Closing speed: 200-500mm/S (adjustable)

Hold-open time: 0-9S (adjustable)

Manual force: <30N, <40N

Sliding noise: ≤55Db

Environment temperature: -20℃～+50℃
